Embossed American Walnut 190mm Wide Plank Wax Oil Engineered Flooring │ AMUER AW-07

Share
Categories	Long Plank Flooring
Brand	AMUER Engineered Hardwood Flooring Manufacturer
Model	AW-07
FOB port	Dalian
Terms of Payment	L/C, T/T

Contact Now

Detail Information

AMUER · AMERICAN WALNUT · CHINA FACTORY

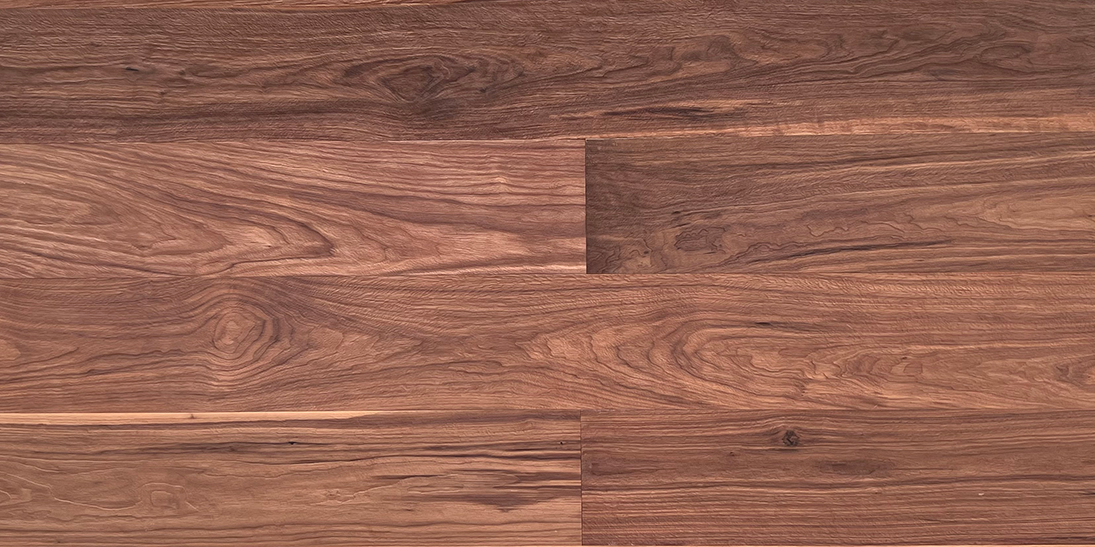

Saw Mark & Chemically Treated Natural Oak Wide Plank — AH-09

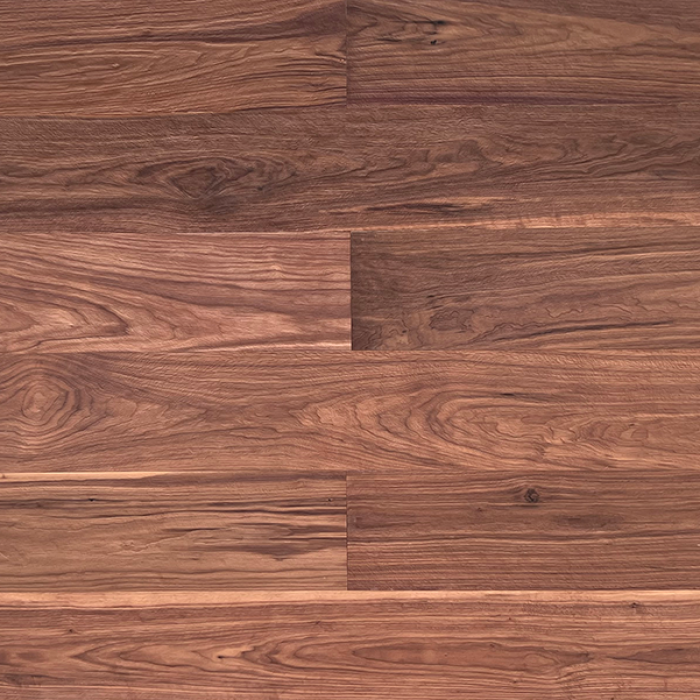

Embossed American Walnut 190mm Wide Plank Wax Oil Engineered Flooring — AW-07

AW-07 is a 190mm wide plank American walnut engineered floor in CD natural character grade with a tactile embossed surface and penetrating wax oil finish: 15/4mm construction with a 4mm solid American walnut wear layer, click floating installation. The combination of embossed surface texture and wax oil penetrating finish produces an antique, hand-crafted character that distinguishes AW-07 from smooth-surface lacquered walnut floors — the embossing replicates the natural wood-grain relief of aged, character-grade walnut, and the wax oil deepens the natural colour while leaving the surface open and tactile to the touch.

The 190mm wide plank format maximises the visual impact of the CD grade walnut: wider boards mean more grain movement, more heartwood-to-sapwood colour variation, and more knot and figure character visible in each board. AW-07 is a floor built for spaces where natural material drama and antique warmth take precedence over tonal consistency — a genuinely characterful American walnut floor with wax oil depth and embossed texture that no smooth lacquered finish can replicate.

CE · FSC Chain of Custody · EUDR · ISO 9001:2015

[ Request a Free Sample ]

[ Get a Factory Price Quote ]

arboren@arboren.com

www.amuerflooring.com

Full Product Specification

Specification	AW-07 Detail
Product Code	AW-07
Species	Top layer American Walnut (Juglans nigra)
Construction	3-Layer Engineered Wood Flooring — cross-ply solid timber core for dimensional stability
Total Thickness	15/4mm (15mm total, 4mm wear layer)
Top Layer	4mm solid American walnut — supports 2–3 sanding cycles over the floor's lifespan; the thickest wear layer in the AMUER walnut range
Board Width	190mm — wide plank format; generous board width maximises the visual impact of CD grade knots, grain movement, and heartwood-to-sapwood colour variation
Board Length	1,900mm
Colour	AW-07 Walnut Wax Oil — warm russet-brown tone deepened and enriched by the penetrating wax oil; CD grade colour range from pale honey-tan sapwood to deep espresso heartwood with mid-brown reddish-brown tones; the wax oil enhances the natural warmth of the walnut without changing the underlying colour; knots, figure, and grain movement read clearly through the wax oil finish
Surface Treatment	Embossment — mechanically pressed wood-grain texture applied to the surface before finishing; the embossing follows the natural grain lines of the walnut, creating a tactile relief surface that replicates the feel and visual depth of aged, hand-planed wood; the embossed texture breaks direct light reflection and adds depth to the wax oil finish
Finish	Wax Oil — penetrating hardwax oil; no surface film; matte; spot-repairable; periodic re-oiling required every 1–3 years
Grading	CD — Natural Character Grade: filled and open small knots; significant grain movement and figure; heartwood-to-sapwood colour variation; the full natural character of American walnut; each board clearly individual and distinct; the CD grade paired with 190mm wide plank maximises the visual drama of walnut's natural character
Installation	Click floating (Uniclic-compatible) — no adhesive required
Underfloor Heating	Compatible — maximum surface temperature 27°C (hydronic and electric)
Emission Class	E1
Certifications	CE (EN 13489) · FSC Chain of Custody · EUDR · ISO 9001:2015
MOQ	200 m² per SKU
Lead Time	45 business days (standard) — 10–15 days for repeat orders with spec on file
Packaging	Carton box with protective foam · Custom OEM packaging available
Production	AMUER China Factory — 50,000 m² · ~300 workers · Est. 1997

PRODUCT OVERVIEW · AW-07 EMBOSSED WALNUT WIDE PLANK

AW-07 is built around three compounding design decisions that produce a fundamentally different floor from the smooth lacquered walnut of AW-01 and AW-02: a 190mm wide plank format that maximises board character, a CD grade that selects for the full natural drama of American walnut, and a combination of embossed surface texture and penetrating wax oil finish that adds tactile depth and antique warmth to the natural walnut surface.

The 190mm wide plank is the visual foundation of AW-07: boards are wide enough to show the full sweep of walnut grain movement, the contrast between dark espresso heartwood and pale honey-tan sapwood, and the knots and figure of the CD grade at a scale that 90mm boards cannot achieve. Each 190mm board is a distinct visual element — an individual panel of character-grade American walnut rather than a narrow strip. The floor reads as bold, materially generous, and naturally dramatic.

The CD grade amplifies this character: where AB grade (AW-02) selects toward consistent heartwood, and ABC grade (AW-01) shows the full colour range without open defects, CD grade accepts knots (filled and small open), pronounced grain movement, figure, and the full heartwood-to-sapwood colour spectrum. The result is the most visually characterful American walnut floor in the AMUER range — no two boards identical, every board unmistakably walnut.

The embossed surface texture and wax oil finish complete the character: the embossing creates a tactile, hand-crafted surface relief that breaks flat light reflection and adds the visual depth of aged wood, while the wax oil penetrates the walnut surface to enrich and deepen the natural colour without forming a hard surface coat. The result is a warm, matte, touchable floor with the natural wood-grain depth of an aged walnut surface.

Design Guide

AW-07's 190mm wide plank, CD character grade, embossed texture, and wax oil warmth place it firmly in traditional, heritage, and rustic-warm interior contexts:

Modern-Rustic Interior

In interiors that combine raw industrial materials with natural warmth — polished concrete, reclaimed timber, natural clay — AH-09's saw mark grain and chemical treatment give the floor a complexity that matches these materials. The linear tooling marks sit alongside raw concrete as an equally honest material showing its making openly.

Warm Amber & Characterful

AH-09's warm amber DE grain, seen against a white or natural wall, reads as grounded and richly toned without being overly dark. The saw mark texture and chemical treatment provide visual depth and material authenticity without the artificiality of stained products. The treated grain adds warmth and character to a palette that calls for a floor with genuine presence.

Installation & Room Suitability

Click Installation (Floating)

AH-09 uses Uniclic-compatible click floating installation. At 220mm wide plank, careful subfloor preparation ensures an even, stable floor that shows the embossed texture to best advantage.

•No adhesive required — click lock floating installation

•Subfloor flatness: 3mm per 2m maximum

•Expansion gap at all walls: minimum 12mm

•48-hour acclimatisation at room temperature before installation

•Install perpendicular to main light source for maximum embossment drama at raking light

•Stagger end joints: minimum 300mm between rows

Foam or combination underlay suitable for wax oil floors

Underfloor Heating

AH-09 is compatible with both hydronic and electric UFH. Wax oil handles UFH thermal cycling well — it does not crack under heat stress as lacquer can. The embossed open-grain surface absorbs oil particularly well after UFH re-oiling.

•Maximum surface temperature: 27°C

•Switch off heating 24 hours before installation

•Restart gradually: 1–2°C per day to operating temperature

•Maintain indoor humidity 40–65% RH year-round

•Wax oil on embossed surface handles UFH cycles without cracking

•Thermal resistance 0.15 m²K/W maximum

Room Suitability

Room / Application	Suitability	Notes
Living Rooms & Open Plan	Excellent	The saw mark texture and chemical treatment character are most visible across a large floor area in natural light. Particularly effective in rooms with morning or evening raking light.
Dining Rooms	Excellent	At eye level from a seated position, the saw mark tooling lines and chemical treatment tonal variation are fully visible. Warm and rustic at close range.
Farmhouse & Rural	Excellent	AH-09's saw mark warm-amber wax oil surface references authentic reclaimed timber floors of historical farmhouses. Chemical treatment adds genuine tonal depth that reads as natural ageing.
Hallways	Very Good	The saw mark texture conceals traffic marks and scuffs effectively. Re-oil annually in high-traffic hallways.
Bedrooms	Very Good	The tactile depth of the saw mark surface is appreciated underfoot. Warm amber tone creates a grounded, restful environment.
Home Offices & Studios	Very Good	Warm, characterful working environment with reclaimed-timber aesthetic. Chair mat recommended under desk chairs.
Kitchen	Good	Wax oil less water-resistant than lacquer. Seal all board joints. Wipe spills immediately. The saw mark channels are more absorbent than a sealed surface.
Bathrooms	Not Recommended	Not suitable for persistent moisture.

Care & Maintenance — Wax Oil on Saw Mark + Chemical Treatment

Task	Method
Daily / Weekly	Vacuum or dry sweep daily along the grain; damp mop weekly with pH-neutral wood cleaner for oiled floors — no standing water.
Spills	Wipe immediately — the saw mark texture and mineral streak zones absorb liquid readily.
Re-oil	Full re-oil every 1–3 years with AMUER Floor Care Wax Oil or compatible hardwax oil. Spot repair: abrade with 240-grit paper along the grain and re-apply locally.
Never	Steam mop · abrasive cleaners · bleach · solvent-based products · UV lacquer products

Certifications & Factory

Manufactured by AMUER — China Factory

AH-09 is manufactured at AMUER's China factory: 50,000 m², approximately 300 workers, producing engineered hardwood flooring since 1997. The saw mark process of AH-09 requires precision mill blade tooling and controlled chemical application — quality control checks saw mark depth consistency, tooling pattern authenticity, and chemical treatment tonal balance.

•CE Marking (EN 13489) — required for all EU market sales

•FSC Chain of Custody — sustainable timber sourcing documentation

•EUDR — EU Deforestation Regulation compliance

•E1 Emission Class — lowest European formaldehyde standard

•ISO 9001:2015 — certified quality management system

FAQ

Q1. What is saw mark and chemically treated oak wide plank engineered flooring?

Saw mark and chemically treated oak flooring is an engineered hardwood floor with a solid European oak wear layer that retains the irregular tooling marks left by the mill blade during primary timber conversion, combined with chemical treatment that opens the grain and deepens the natural tone. AMUER AH-09 is 220mm wide, 2,200mm long, 15/4mm total thickness with a 4mm solid oak wear layer, DE grade, wax oil finish, and click installation.

Q2. How is saw mark texture different from brushed or embossed surfaces?

Saw mark texture is the retained mark of the mill blade itself — irregular, linear, and unique to each board — rather than a texture created by abrasion (brushing) or mechanical pressing (embossing). It produces the most authentic, reclaimed-timber character of the three processes, since the surface reflects the actual primary conversion of the timber rather than a secondary surface treatment.

Q3. Why is wax oil used on AH-09 rather than UV lacquer?

Wax oil penetrates the wood fibre without forming a surface film, preserving the full depth of the saw mark texture and allowing the chemical treatment's tonal variation and mineral streak character to remain visible and tactile. A UV lacquer film would partially mask both qualities.

Q4. Can AH-09 be sanded, refinished, and used over underfloor heating?

Yes — AH-09 has a 4mm solid oak wear layer supporting 3–4 sanding and refinishing cycles, and is compatible with hydronic and electric underfloor heating up to 27°C surface temperature. Wax oil handles UFH thermal cycling well without cracking. Maintain indoor humidity at 40–65% RH year-round.

Contact Us

Specify AH-09 for Your Next Project

Saw Mark & Chemically Treated Natural Oak · 220mm Wide Plank · DE Grade · Wax Oil · Click

15/4mm · 2,200mm length · CE & FSC certified · Factory direct AMUER China · 200 m² MOQ
